S230ECOB
Striscia LED COB, 230Vac 12W, IP65

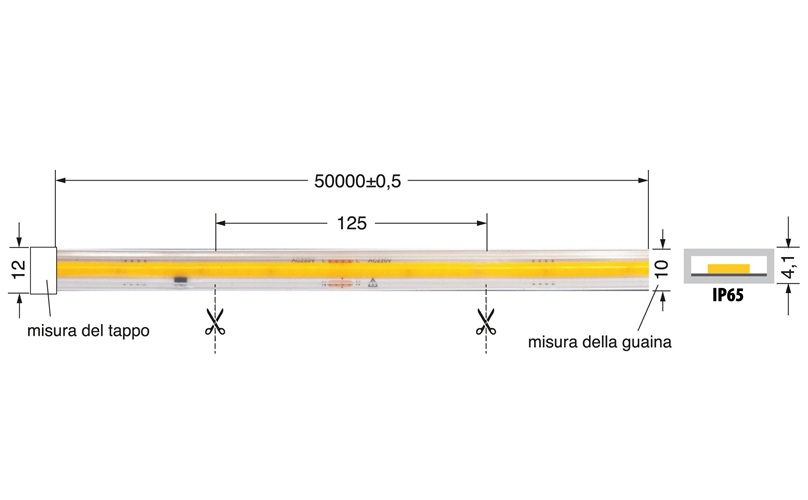

Striscia LED COB flessibile su circuito bianco con nastro adesivo sul retro per una rapida installazione. Alimentata direttamente a 230Vac, ideale per l’illuminazione di ambienti non accessibili al pubblico. Dedicata in innumerevoli applicazioni quali illuminazioni decorative, architetturali o commerciali. Fornita in bobine da 5m/25m/50m, separabile ogni 12,5cm. Connessione lineare fino a max 50m. Nella confezione sono compresi due kit di chiusure.
| Certificats | CE , RoHS |
| Classe IP | IP65 , IP20 |
| Matériau du corps | Alluminio |
| CRI | Ra>80 |
| Lumen | 1150lm , 1120lm , 1180lm |
| De vrais lumens | 90 |
| Watt | 12,0W |
| Led Type | COB |
| MacAdam | SDCM<5 |
| Classement des objectifs | 120° |
| Alimentation électrique | 230,0Vac |
| Connexion | Cavo |
| Lien | Collegamento in parallelo |
| Emballage | Bag |
| Classe énergétique | F |
| Garantie | 3 years |
Downloads:
| Code | Description |
|---|---|
| S230E12CONA | Connettore clip angolare per strip 230Basic COB |
| S230E12CONN | Kit connettore 230Basic |
| S230E12CONS | Connettore clip strip to strip 230Basic COB |
| S230E12CONW | Connettore clip strip to wire 230Basic COB |
| S230E12WC05 | Striscia LED COB, 230Vac 12W, Luce calda 3000K IP65, bobina 5mt |
| S230E12WC25 | Striscia LED COB, 230Vac 12W, Luce calda 3000K IP65, bobina 25mt |
| S230E12WC50 | Striscia LED COB, 230Vac 12W, Luce calda 3000K IP65, bobina 50mt |
| S230E12WCM | Striscia LED COB, 230Vac 12W, Luce calda 3000K IP65, lavoraz. al metro |
| S230E12WG05 | Striscia LED COB, 230Vac 12W, Luce calda 2700K IP65, bobina 5mt |
| S230E12WG25 | Striscia LED COB, 230Vac 12W, Luce calda 2700K IP65, bobina 25mt |
| S230E12WG50 | Striscia LED COB, 230Vac 12W, Luce calda 2700K IP65, bobina 50mt |
| S230E12WN05 | Striscia LED COB, 230Vac 12W, Luce neutra 4000K IP65, bobina 5mt |
| S230E12WN25 | Striscia LED COB, 230Vac 12W, Luce neutra 4000K IP65, bobina 25mt |
| S230E12WN50 | Striscia LED COB, 230Vac 12W, Luce neutra 4000K IP65, bobina 50mt |
| S230E12WNM | Striscia LED COB, 230Vac 12W, Luce neutra 4000K IP65, lavoraz. al metro |
| S230ECONN | Kit connettore 230Basic |
| S230EPRF | Profilo in alluminio per strip 230Vac in kit (barra da 2mt) |
| Alimentation d'entrée | Nombre de LED | Couleur de la lumière | Classement des objectifs | Lumen | Watt | Classe IP | Étiquette énergétique | |
|---|---|---|---|---|---|---|---|---|
| S230E12CONA | ||||||||
| S230E12CONN | ||||||||
| S230E12CONS | ||||||||
| S230E12CONW | ||||||||
| S230E12WC05 | 230,0Vac | 296 | Warm White, 3000K | 120° | 1150lm | 12,0W | IP65 |
|
| S230E12WC25 | 230,0Vac | 296 | Warm White, 3000K | 120° | 1150lm | 12,0W | IP65 |
|
| S230E12WC50 | 230,0Vac | 296 | Warm White, 3000K | 120° | 1150lm | 12,0W | IP65 |
|
| S230E12WCM | 230,0Vac | Warm White, 3000K | 120° | 1150lm | 12,0W | IP65 |
|
|
| S230E12WG05 | 230,0Vac | 296 | Warm White, 2700K | 120° | 1120lm | 12,0W | IP65 |
|
| S230E12WG25 | 230,0Vac | 296 | Warm White, 2700K | 120° | 1120lm | 12,0W | IP65 |
|
| S230E12WG50 | 230,0Vac | 296 | Warm White, 2700K | 120° | 1120lm | 12,0W | IP65 |
|
| S230E12WN05 | 230,0Vac | 296 | Natural White, 4000K | 120° | 1180lm | 12,0W | IP65 |
|
| S230E12WN25 | 230,0Vac | 296 | Natural White, 4000K | 120° | 1180lm | 12,0W | IP65 |
|
| S230E12WN50 | 230,0Vac | 296 | Natural White, 4000K | 120° | 1180lm | 12,0W | IP65 |
|
| S230E12WNM | 230,0Vac | 296 | Natural White, 4000K | 120° | 1180lm | 12,0W | IP65 |
|
| S230ECONN | ||||||||
| S230EPRF | IP20 |
